REVOLUTION ROV

Mission-ready remotely operated vehicle with greater payload capabilities, deeper depths, and advanced stabilization.

At a Glance

Depth rating up to 305 meters (1,000 feet)

Depth rating up to 305 meters (1,000 feet)

8 hour Battery - including quick swap

8 hour Battery – including quick swap

Wheeled Pelican case

Wheeled Pelican case

Submersable camera icon

Low maintenance

Comprehensive sensor integrations

Comprehensive sensor integrations

4k camera quality

4k camera quality

260 degree camera rotation

260 degree camera rotation

Sonar and positioning ready

Sonar and positioning ready

Join the REVOLUTION

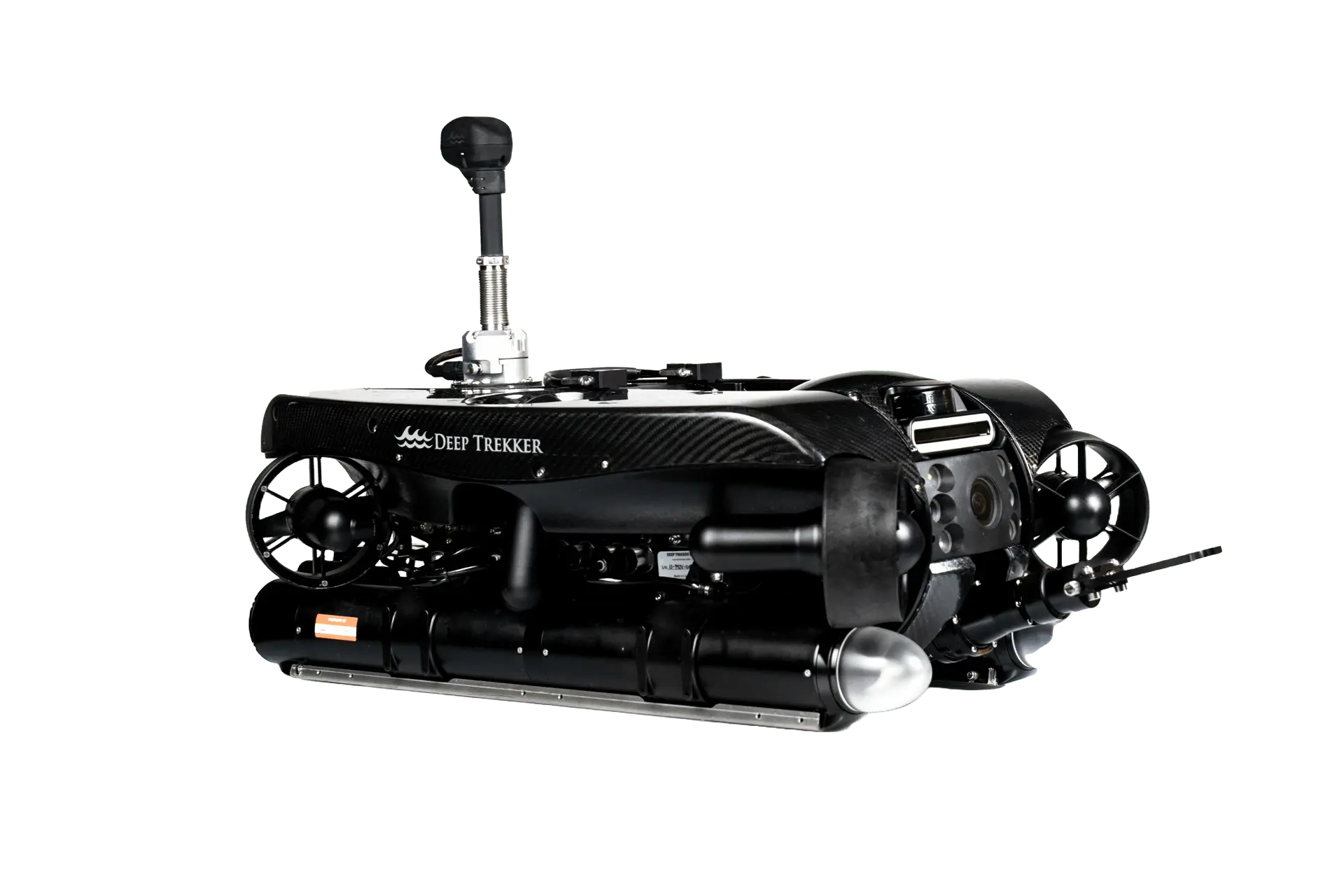

The Deep Trekker REVOLUTION is a completely re-imagined ROV. The patented pending revolving head allows operators to rotate the camera, manipulators, and sonar all while station holding in moving water.

Deep Trekker Revolution Package

REVOLUTION ROV Underwater Drone | Deep Trekker Robotics

A completely new mechanical design from its predecessor. The Deep Trekker REVOLUTION is a faster more powerful expeditionary system. With the freedom to move, the REVOLUTION has optimal maneuverability even in harsh environmental waters. Depth rated to 305 m (1000 ft) with robust vectored thrusters to move laterally and work in currents.

Details
Need help? Let us help build a custom package

REVOLUTION Spec Highlights

REVOLUTION SPEC HIGHLIGHTS

ROV Gereral Specs

Width: 440 mm (17.3”)
Height: 235 mm (9.3”)
Length: 717 mm (28.2”)
Weight (in air): 26 kg (57 lb)
Body Material: Anodized Machined Aluminum, Carbon Fiber, Stanless Steel, & Buoyancy Foam
Window Material: Sapphire & Acrylic
Depth Rating: 305 m (1000 ft)
Operating Temp: -10°C to 50°C (14°F – 122°F)
Case (optional): Custom Pelican Air 1650, Handle and Wheels
Warranty: 1 Year – Parts and Labor (optional 2-3)

Lights and Camera

Video: UHD 4K – 3840X2160 720p – 1280×720, 30FPS 0.001 Lux,260° Total Range of View
Picture: JPG 8mp
Lights: High Efficiency LED Fully Dimmable, 8,400 – 11,800 Lumens
Thomas Griner

When everything was said and done, all three forebay inspections were completed 100% satisfactory, were done safer, faster and with the innovation of using the (revolution rov) vs. divers has the ability to save my company millions for the investment of a few thousand into an ROV.
Thomas Griner, Operations Officer, Nuclear Power Facility, Midwest USA

Canada flag

Our larger ROV has not been on a job site because its use was not anticipated and its footprint was just too large. We purchased the DTG2 to fill the gap we had. It’s small, very portable and the video feed is reasonable. We have shelved drop cameras that cost more than this unit.
Bruce Gray, Operations Officer, Environment Canada

Lars Linds

Nice and handy ROV. A perfect alternative to divers when you need eyes underwater. Virtually no preparation needed. Just bring the case to your work site, take out the ROV, connect the remote and throw it into the water.
Lars Lind, Miko Marine

Expeditionary ready ROV

The REVOLUTION is designed to be deployed within minutes. The remotely operated vehicle and its components (controller, reel, USBL, sonar, etc) are completely battery operated, allowing the system to be deployed from anywhere.

Expeditionary ready ROV

Advanced stability and control

Advanced stability and control

Powered by BRIDGE, the REVOLUTION ROV provides advanced stability in underwater environments. Equipped with automated station holding the camera, sonar, and manipulator arm are capable of rotating 260° for situational awareness.

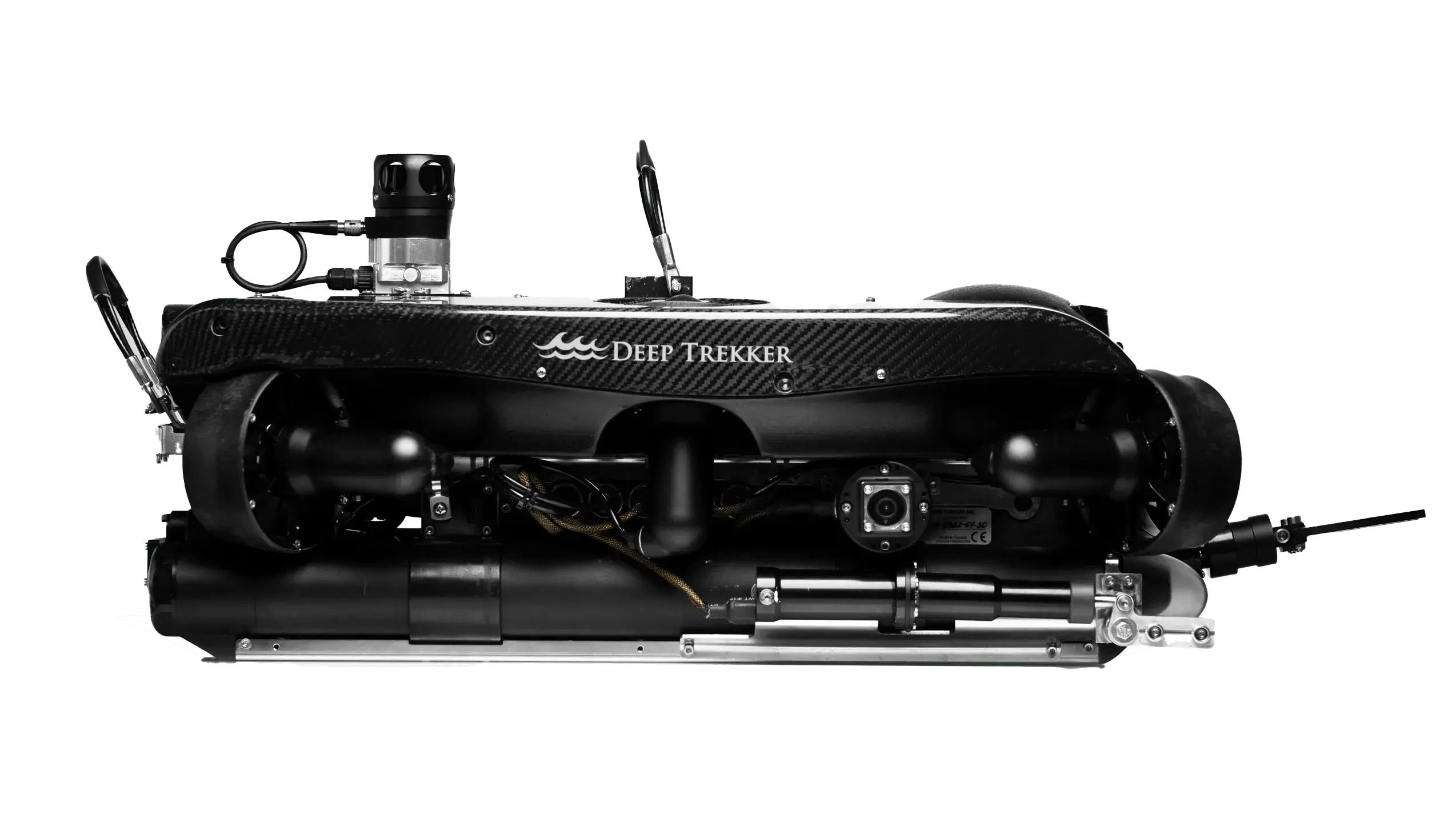

Six integrated vectored thrusters

Six integrated vectored thrusters

The 6 vectored thrusters allow for lateral movement side to side and precise turning forward and backward. Allowing for maximum control and advanced station holding.

Fully assembled, tested and ready operate

Fully assembled, tested and ready operate

The mission ready REVOLUTION ROV requires limited setup. An expeditionary system that allows operators to take it out of the box and into the water within minutes.

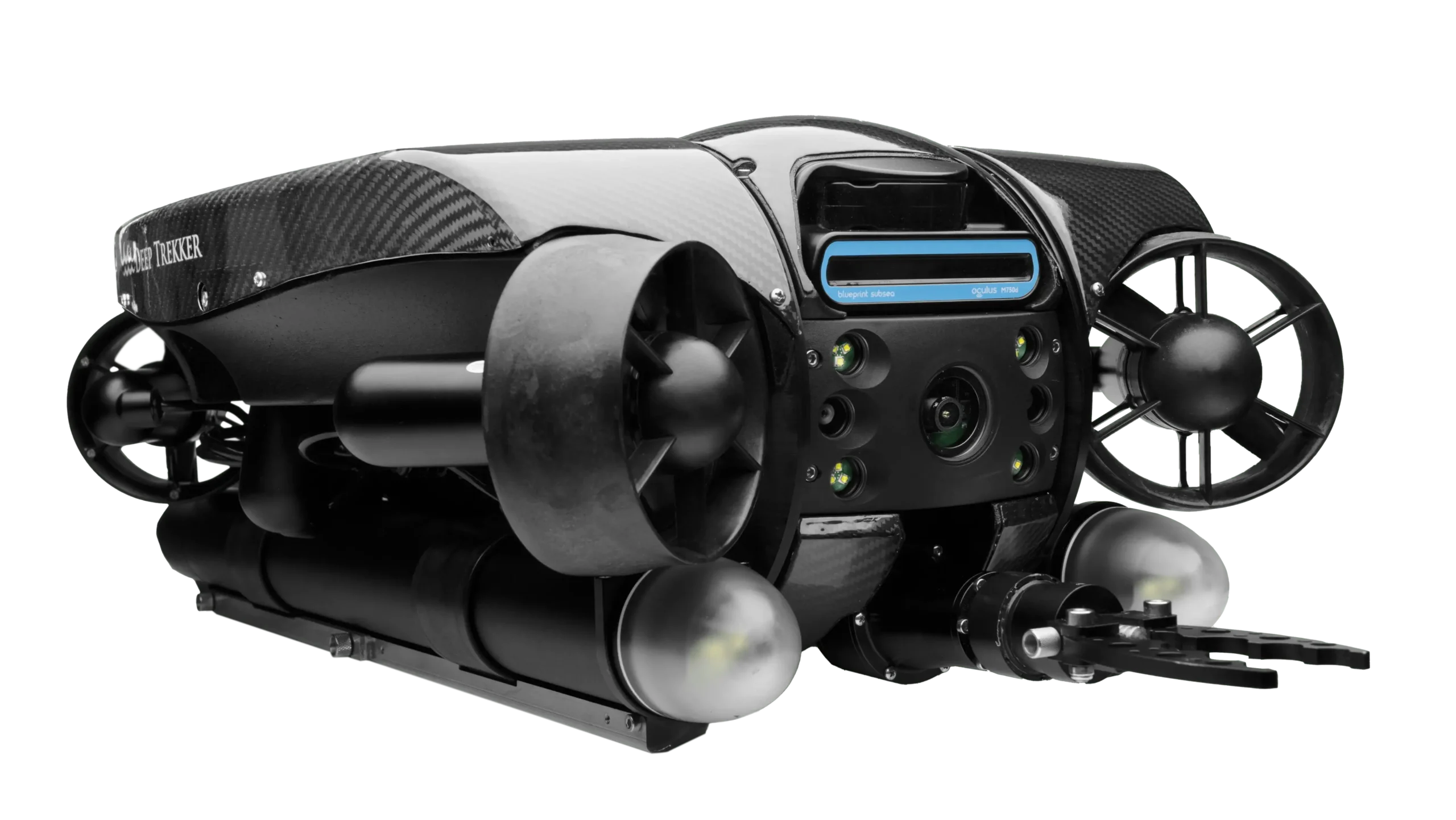

Durable construction

Engineered with carbon fiber and stainless steel, REVOLUTION delivers dramatic power, enhanced capabilities and performance.

It is well suited for offshore underwater inspections in various industries including, aquaculture, energy, naval defense, and marine research.

Durable constructiondeep trekker dt revolution rov carbon fibre

Powered by BRIDGE Technology

An intelligent, technology platform from Deep Trekker. An operating system designed with custom hardware and software; for control, integration, communication and enhanced operation. Deep Trekker BRIDGE leverages the latest in technology to provide solutions that are intuitive and easy to use for its customers.

Simplified control
Seamless integrations
Constant communication
Enhanced operations

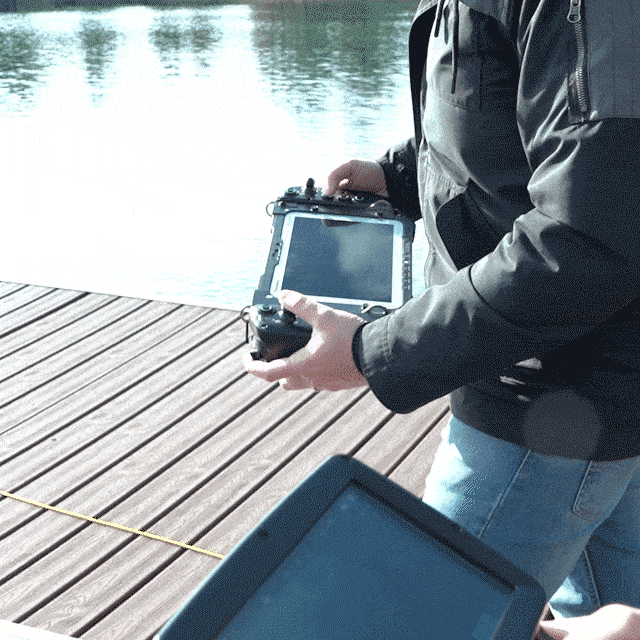

Weatherproof handheld controller

Simple user interface

Integrated sonar screen overlay
Recordable heads-up display data (HUD)
Large clear screen & simple controls
External ports including HDMI, USB, Ethernet, and SD card connectivity
ROV ADD-ONS

ROV Add-Ons

With an improved intelligence platform, REVOLUTION has the capability to integrate with current and future third-party products.
Equip your REVOLUTION with mission specific tools and sensors. From battery-assisted tether reel, underwater controller, imaging sonars, USBL positioning, and many more.

View Add-Ons
